Keystone Retaining Wall Systems
Keystone Compac® III
Featuring unrivaled aesthetic options, cost saving versatility and proven wall performance, the Keystone Compac III is favored by architects, engineers and contractors worldwide.
Features & Benefits
- Deep unit design – Provides exceptional structural stability for taller walls.
- Fiberglass pin connection system – Creates secure alignment and positive geogrid connection. Adjustable setback options – Allows near-vertical or battered wall construction.
- Open-core configuration – Improves drainage and gravel interlock between units.
- Trapezoidal block shape – Simplifies curved wall installations.
- High shear resistance – Engineered for demanding structural applications.
- Durable concrete construction – Built for long-term strength and weather resistance.


Available Colors
DESERT TAN
GREY
ON REQUEST
Product Details
| UNIT | width | depth | height | WEIGHT | FACE AREA |
|---|---|---|---|---|---|

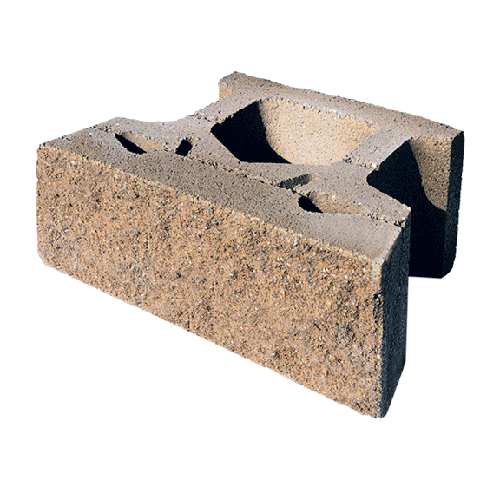

| Keystone Compac III – Straight | 18″ | 12″ | 8″ | 71-76 lbs. | 1 sq.ft. |

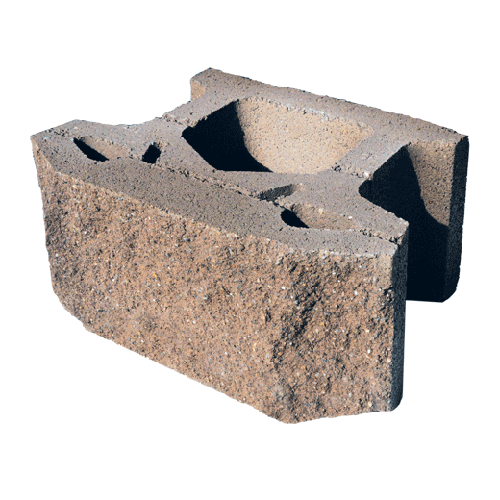

| Keystone Compac III – Tri-plane | 18″ | 12″ | 8″ | 67-72 lbs. | 1 sq.ft. |

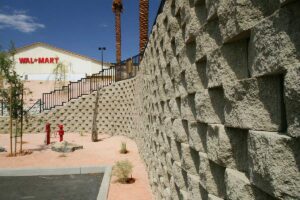

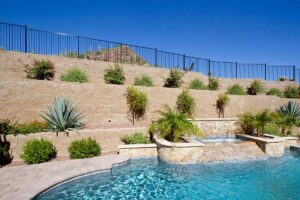

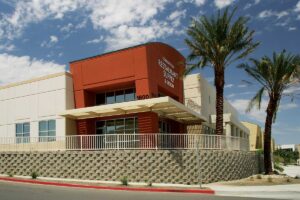

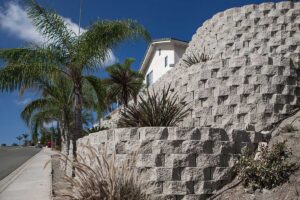

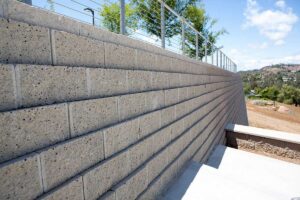

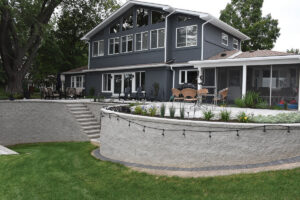

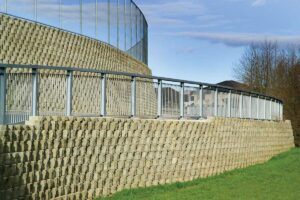

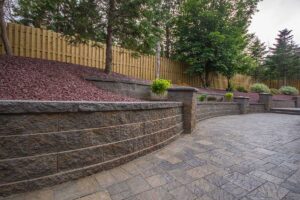

Photo Gallery
